Automobile Wire Harness JST 3.96mm Pitch VHR-7N 7 pin wiring harness
JST VH3.96 5Pin
1 piece
Quantity:
- Model Number:JST VH3.96 5Pin
- Application:Automobile, Automobile Home Appliance etc.
- Product name:JST 3.96mm Pitch VHR-6N 7 pin wiring harness for Automobile
- Certification:RoHS REACH ISO9001 IATF16949
- Connector A:JST VH 3.96mm 6Pin
- Connector B:JST VH 3.96mm 6Pin
- Wire gauge:1007 18AWG
- Wire length:300mm
- Wire color:Blue etc.
- Conductor:Tinned Copper
- Rated Current:5A
Technology character

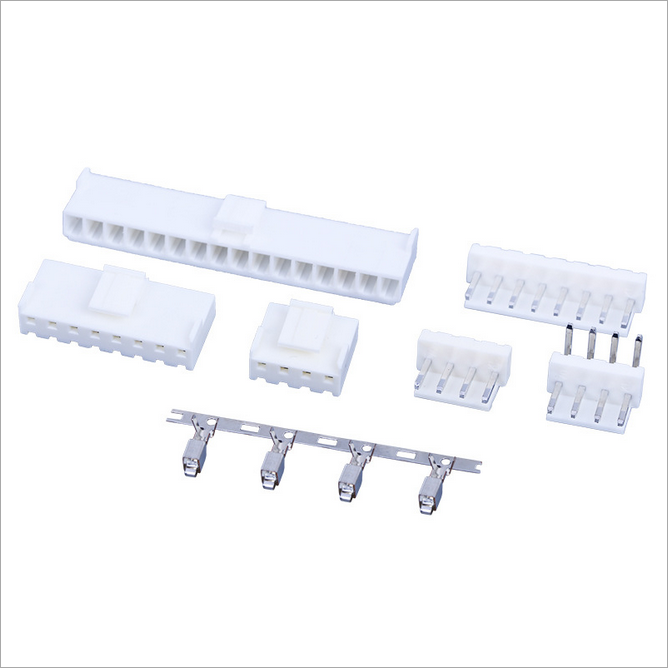

JST VHR Housing and Terminal Specs:
Rated Voltage: 250V AC,DC
Rated Current: 10A AC,DC
Contact Resistance: 10MΩ max
Insulation Resistance: 1000MΩ min
Withstand Voltage: 1500V AC/minute
Temperature: -25℃~+85℃
Wire Range: AWG#22~#18
Housing: (Nylon)94-V0(2)
Terminal: Phosphor Bronze,Tin Plated
Wafer: (Nylon)94-V0(2)
