Model Number:Inverter Cable power cable battery Cable Assembly

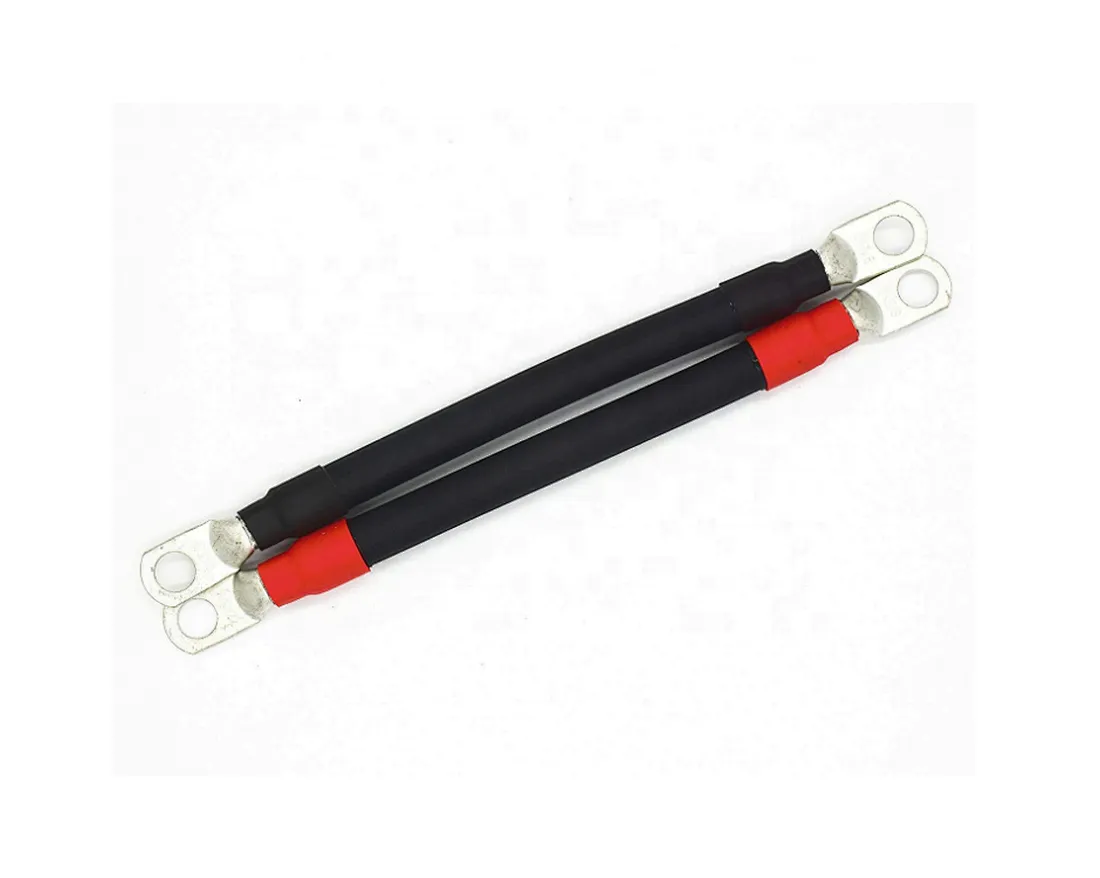

Product name:2 AWG Battery Cable Wire - Solar Marine Power Inverter Car Pure Copper
Certificate:SGS RoHS IATF16949
Function:Pv Solar Panel Installation
Gauge:2AWG or 4/0AWG
Length:305mm or Customization
Insulation Material:EPDM PVC Silicone
Cable lugs:cable lugs with 5/16"or 3/8"diameter mounting holes
Max Voltage:600 VAC
Temperature range:-50°C ~ 105°C
Color: Black or Red
Conductor material: 100% Pure Copper or Tinned Copper
Applications: Secondary voltage resistance welding leads and power supply applications not exceeding 600 VAC.
RING TERMINALS
Material:Tin-plated copper
Hole size (in): 1/2, 3/8, or 5/16
Ourbattery cables are manufactured using our Power-Flex Welding cable, which is a highly flexible industrial grade electrical copper cable.
Our battery cables are excellent for battery bank wiring, inverter cables, grounding cables, RV & car wiring applications, golf cart wiring, and any other application where a highly flexible pure copper conductor is required.
Our battery cables are available with pre-attached cable lugs with 1/2, 3/8, or 5/16 diameter mounting holes. Polyolefin heat shrink tubing is applied at the cable lug attachment point to form a protective seal.
Simply choose your desired cable color(s), cable length, and cable lug stud size from the drop-down tabs.
