- Conductor Material:Copper
- Insulation Material:PVC
- Jacket:PVC
- Number of Conductors:2
- Product name:sae cable with water proof fuse holder to Ring Terminal
- wire:SPT-2 16AWG copper wire
- fuse current:10A
- Voltage:12V
- Item Weight:4 ounces
- wire length:2 feet long
- Cable insulation resistance:5M Ohm minimum

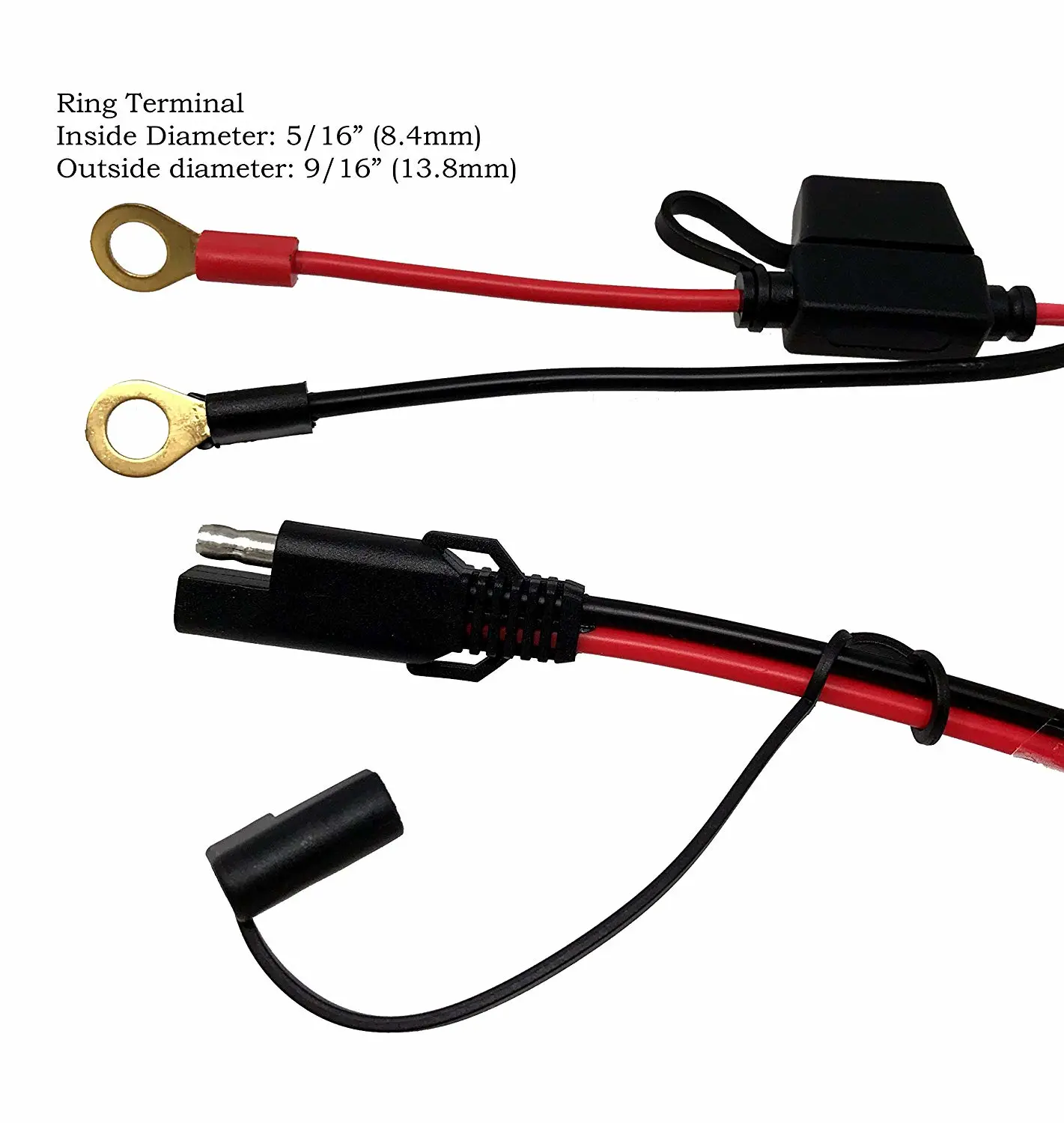

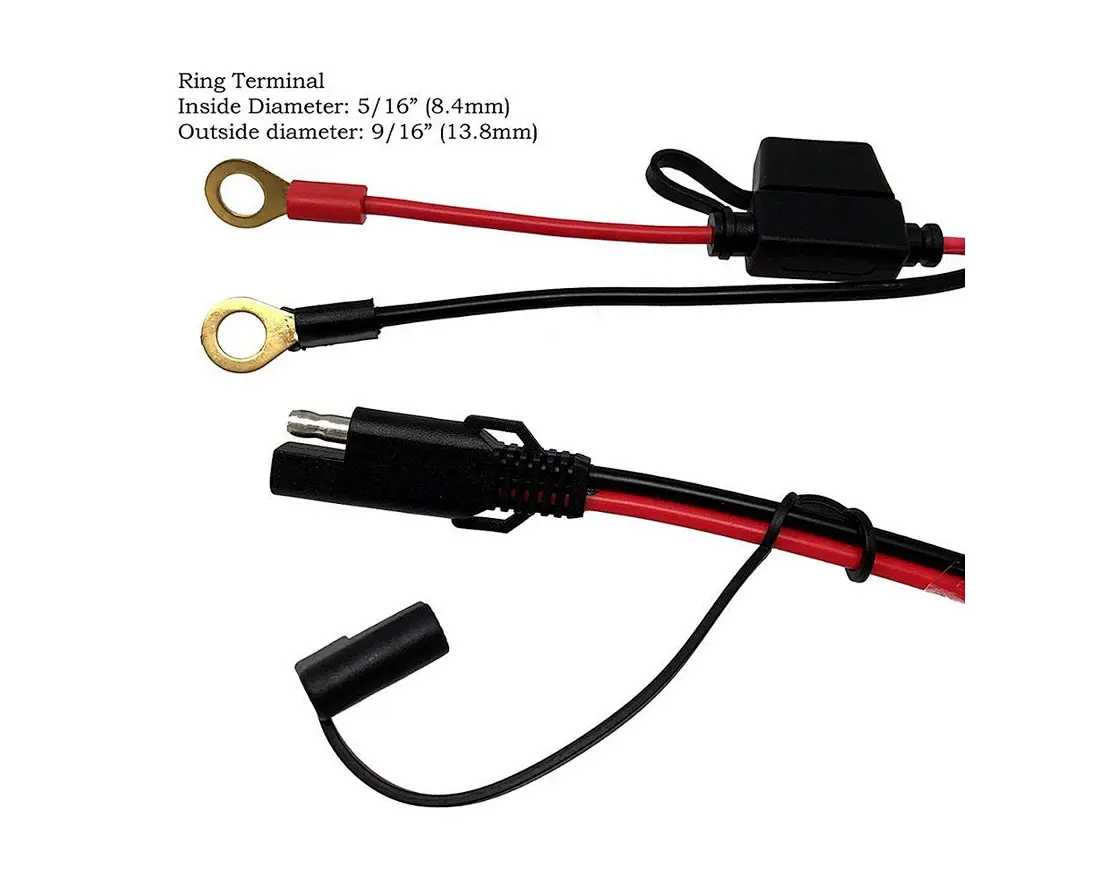

- Ring terminals:8.4mm inside diameter; 13.8mm outside diameter
- SAE connector material:Nickel plated brass
- Certification:ROHS
12V Ring Terminal Harness With Black Fused 2Pin Quick Disconnect Plug With 16 Gauge Copper Wire 10A Fuse
- Plugs into most maintenance battery chargers such as Battery Tender, NOCO Genius, Schumacher, Black & Decker and more
- Convenient for hard-to-access batteries
- 2 feet long SPT-2 16AWG copper wire with 10A fuse
- 2-pin quick disconnect plug compatible with most heated suits for motorcycles or snowmobiles
- Attached weatherproof dust cover protects 2-pin quick disconnect SAE terminals from raindrops and dusts
Made of premium 16 gauge copper wire, 2 feet 12V ring terminal harness with 2-pin quick disconnect plugs into most maintenance battery chargers such as Battery Tender, NOCO Genius, Schumacher, Black & Decker and more. As many motorcycles batteries are underneath the bodywork and hard to access, the ring terminal connects directly to the hard-to-access battery and can be left there permanently avoiding the hassle of dismantling the battery compartment every time. According to UL-1236 standard a total of 12 feet is required from the electric outlet to the motorcycle’s battery terminal, a SAE extension cable of at least 10 feet is recommended to use with this ring terminal harness together. As we always put customer’s safety as our first concern, we designed two types of SAE extension cable SAE-12 (12 feet) and SAE-25 (25 feet) to be used with this product together. It is a must-have maintenance battery charger for motorcycle, Scooter, ATV, boat and etc. All materials are RoHS compliant.
