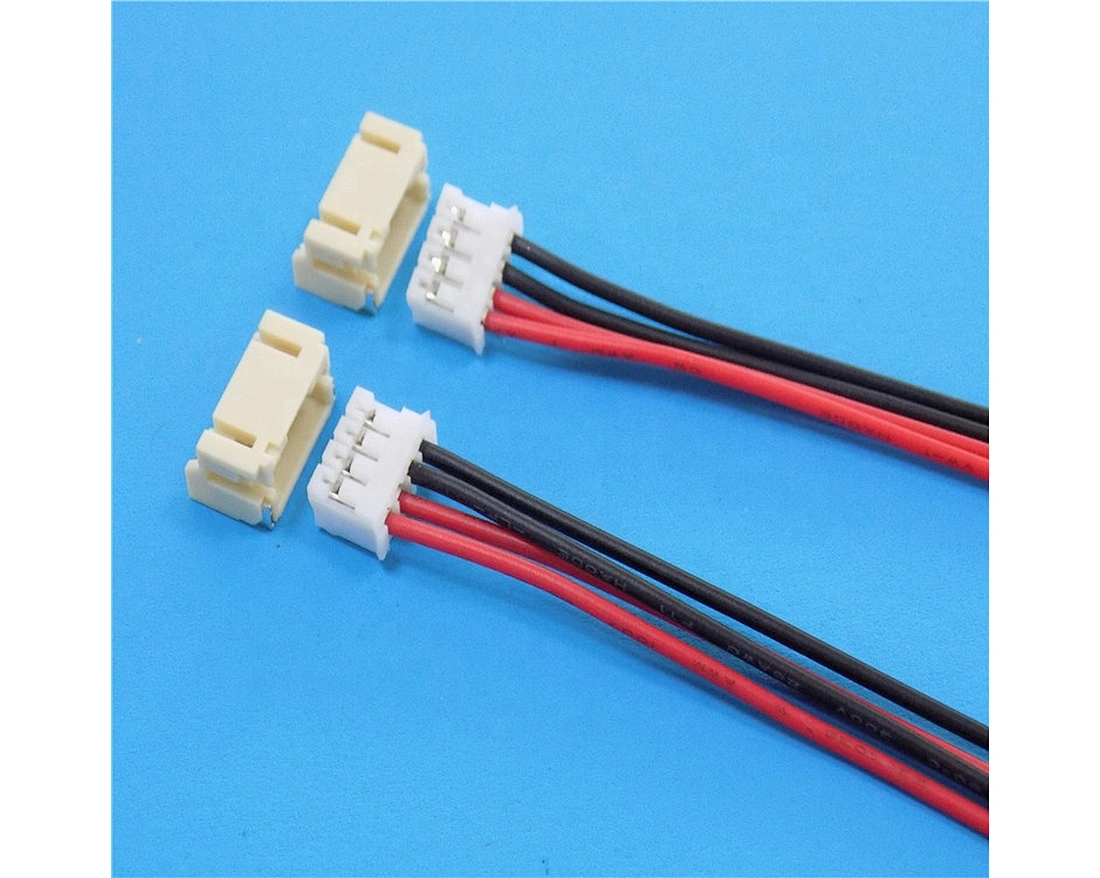

Custom Automotive Wire Harness Cable Assembly JST PH 2.0mm Pitch 4Pin Male to Male cable harness for Automobile LiPo Battery
JST PH2.0-4P
1 piece
Quantity:
- Model Number:JST PH2.0-4P
- Application:Automobile, Automobile Electronics LiPo Battery
- Product name:JST PH 2.0mm Pitch 4Pin Cable Harness Custom cable harness
- Certification:IATF16949 RoHS Reach ISO9001
- Connector:JST PH 4Pin Connector
- Pitch:2.0mm
- Connector Type:Straight
- Wire Gauge:1007 24AWG PVC Hook Wire
- Conductor:Tinned Copper
- Cable Length:100mm 200mm 300mm or Customized Length
- Rated Current Voltage:2.0A 100V AC DC
Technology character
Connector Brand:JST
Connector Pitch:2.0mm
Connector Pin Number:2P to 16P
Rated Current:2.0A AC DC
Rated Voltage:100V AC DC
Temperature Range:-25℃ to +85℃
Contact Resistance:≤20mΩ
Insulation Resistance:≥1000MΩ
Withstand Voltage:800V AC/Minute
Applicable Wire Gauge:AWG#30 to #24
Applicable PC Board Thickness:1.6mm
Housing Material:Nylon PA66
Wafer Material:
Pin:Brass Tin-Plated
Base:PA66 Nylon
Terminal Material:Phosphorus Bronze Tin-Plated
