- Model Number:RG-59 Coaxial Cable
- Type:COAXIAL
- Application:Camera, Monitor, Electrical & Test Equipment Networking
- Packing:Polybag
- Outer Diameter:5.0mm
- Connector Color:Silver
- Connector Type:BNC
- Shielding:Braid+Al Foil
- Gender:MALE-MALE
- Jacket:PVC, PVC PE Jacket
- Conductor:Bare Copper, 99.9% Oxygen-free Copper
- Product name:RG59 dvi to coaxial bnc cable
- Certification:RoHS IATF16949
- Connector A:BNC Male
- Connector B:BNC Male
- Cable:RG59 Coaxial Cable
- Gauge:96 BC Braid+Al Foil 1*0.8BCOFC
- Length:1m 2m 3m or Custom Length
- Impedance:75Ω

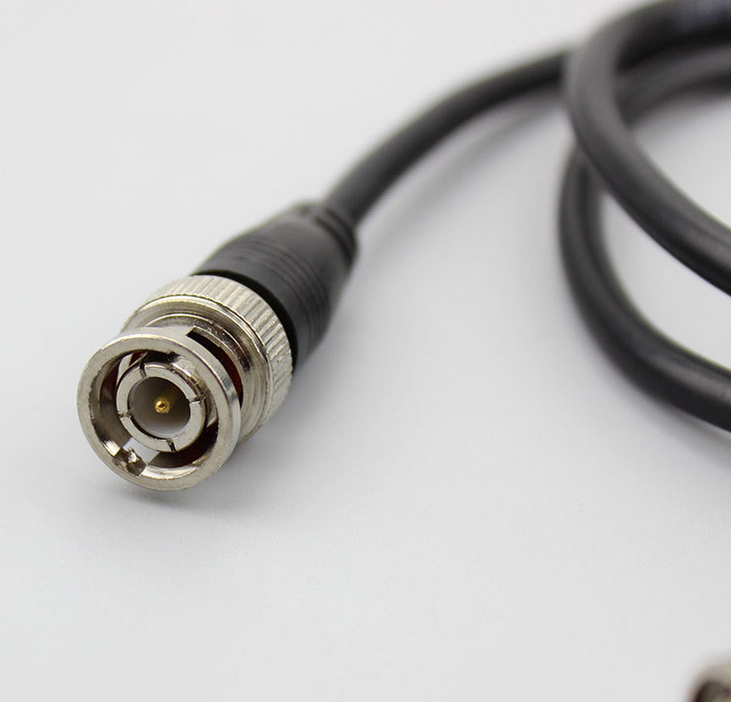

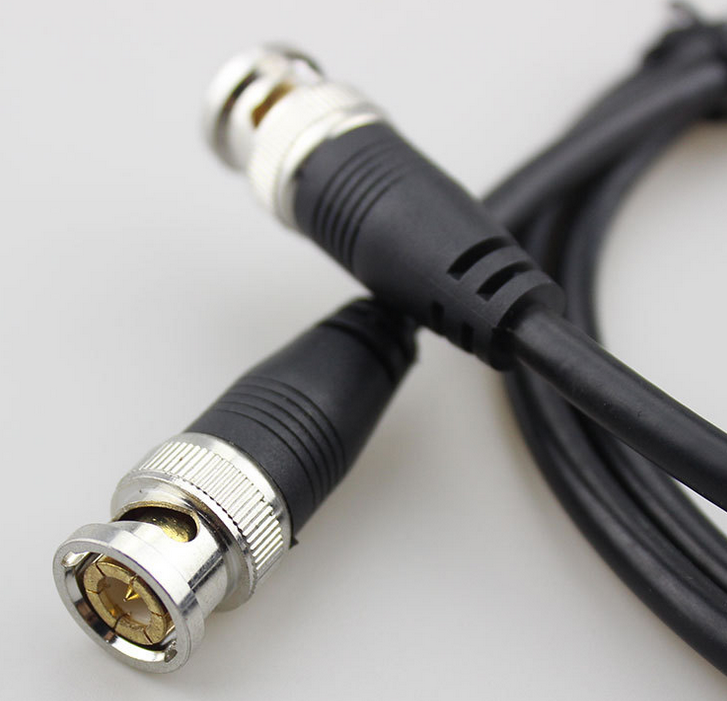

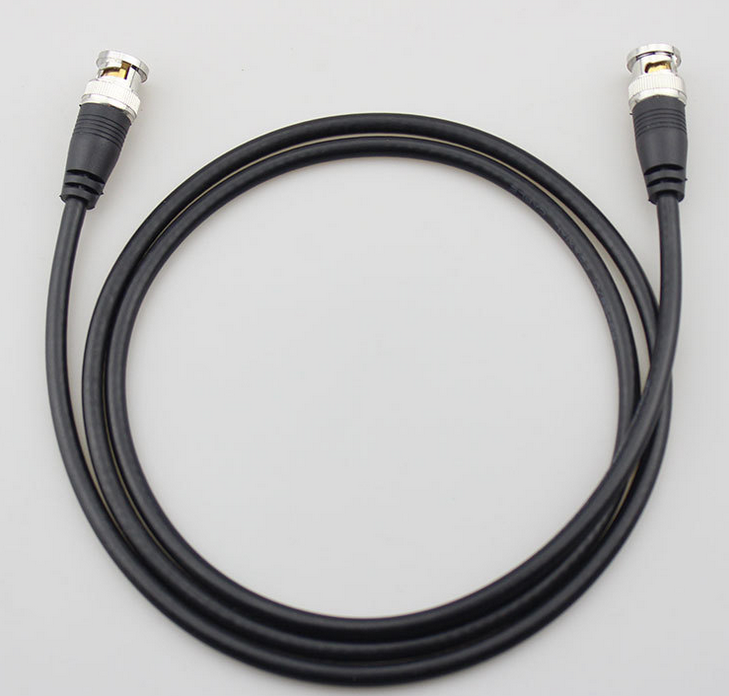

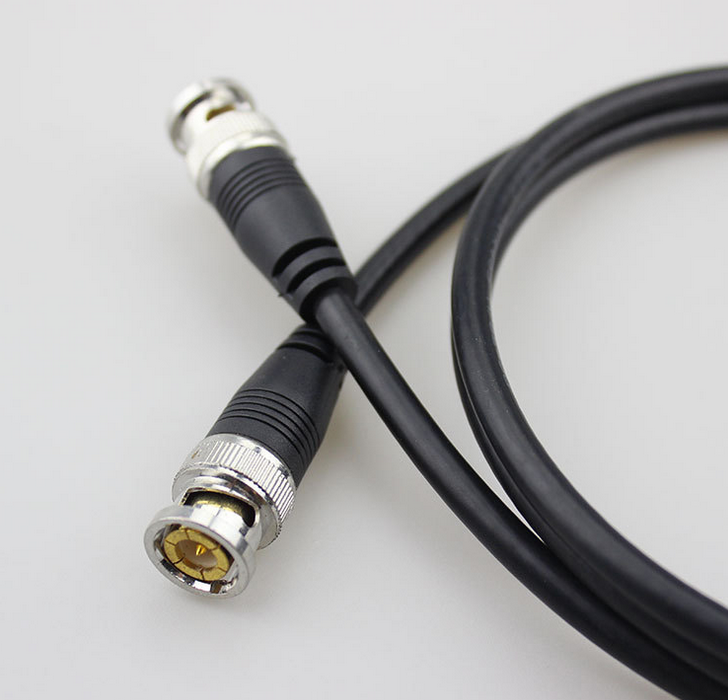

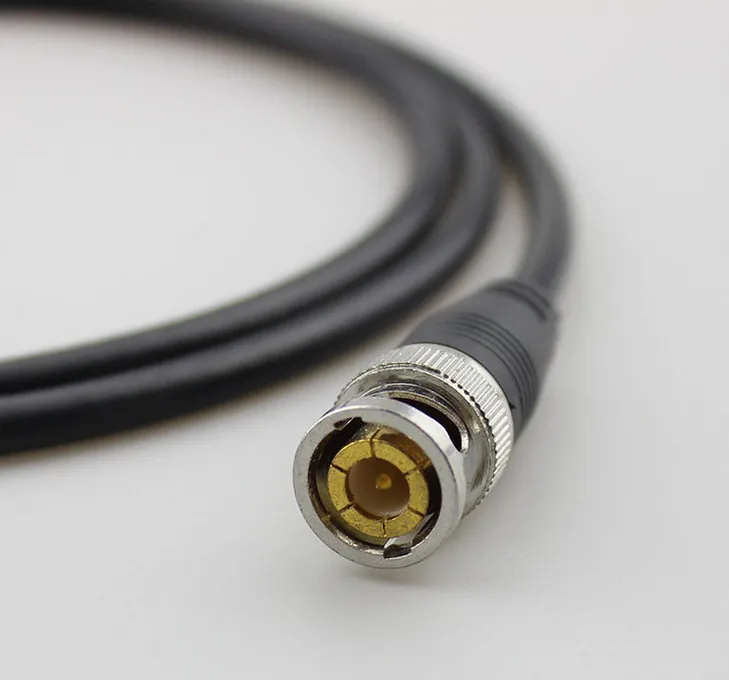

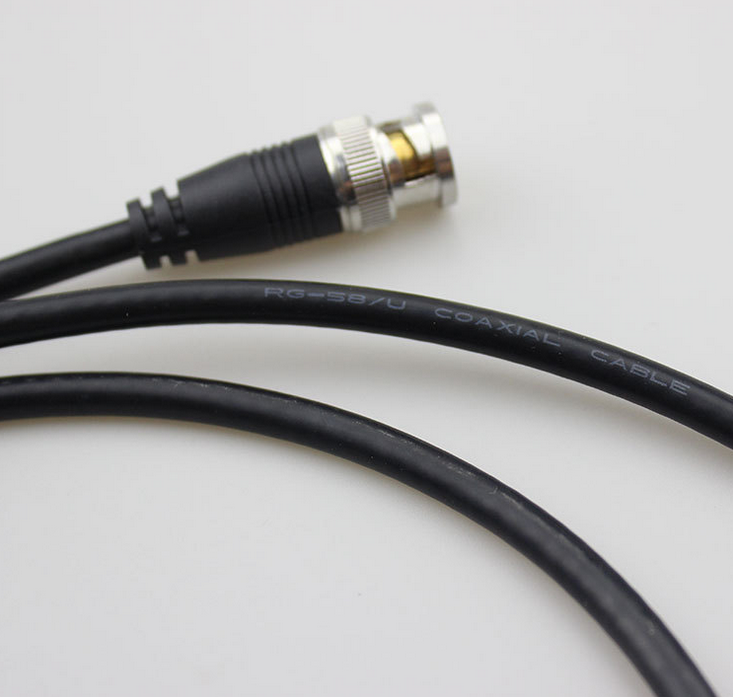

RG59 BNC Male to Male 75 Ohm Coaxial Cable
This is BNC Male to BNC Male RG59 Coaxial Cable For CCTV Camera features two fully shielded RG59 75Ω (75 Ohm) Coaxial wire and BNC male connector. It supports Plug and Play ready for 1080P/720P or CCTV cameras (SDI, TVI, TVI, AHD). Ideal for HDSDI, HDTVI, HDCVI, AHD and analog cameras.
Impedance: 75Ω
Main cable length: 1m or Custom length
Cable Dia.: 5mm Max.
Maximum input voltage: 1000V pck
Maximum input current: 2.5A
Input Capacitance: 100P
Bandwidth: ≥ 100MHz
Rise time: ≤ 3.5ns
Quality: 50g
Operating temperature: -40 ~ 60 ℃
Storage Temperature: -20 ~ 75 ℃
Product Name | RG59 BNC Male to Male 75 Ohm Coaxial Cable |
Brand | HXE |
Model No. | BNC Coaxial Cable-012 |
Cable Type | BNC to BNC Cable |
Connector 1 | BNC male connector x 2 |
Cable Type | RG59 Coaxial Cable |
Shielding | Silver Coated Braid |
Impedance | 75 ±2 Ohm |
Frequency-Max | 3GHz |
Temperature, Rating | -40 to +60 °C |
Pin layout | Standard or Customized |
Sample | Available |
MOQ | 500 pcs |
Package | PE bag |
Warranty | 12Months |
OEM/ODM | Support |
Dongguan Hexie New Energy Technology Co.,Ltd. was founded in 2009.

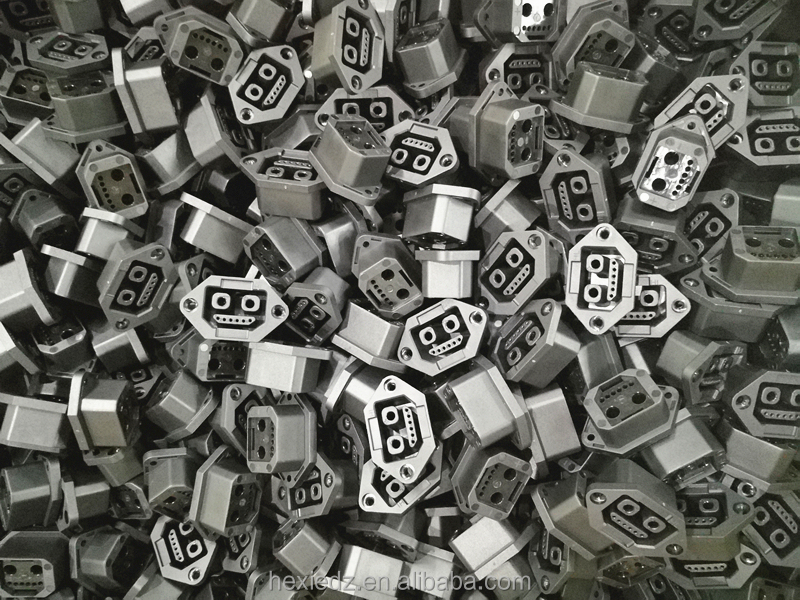

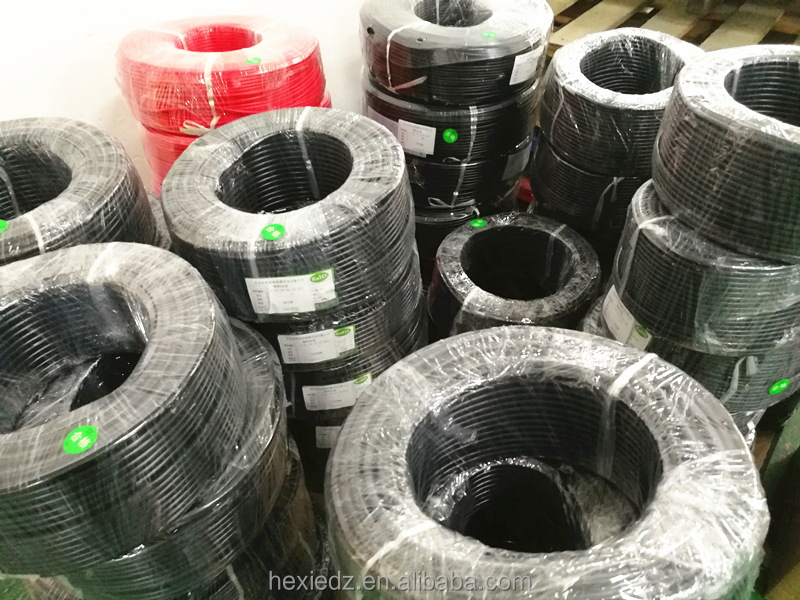

We mainly produce new energy vehicle wiring harness,connectors,battery holders;RF Coaxial Cable, RF Connectors and Antenna Cable,USB&HDMI cables,audio cables and other cables for digital products,specialty cables, PV cable etc.

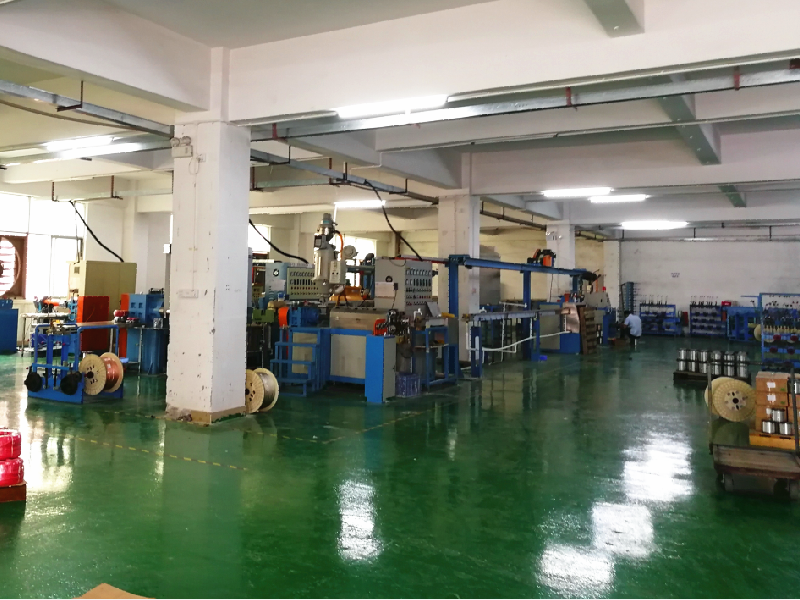

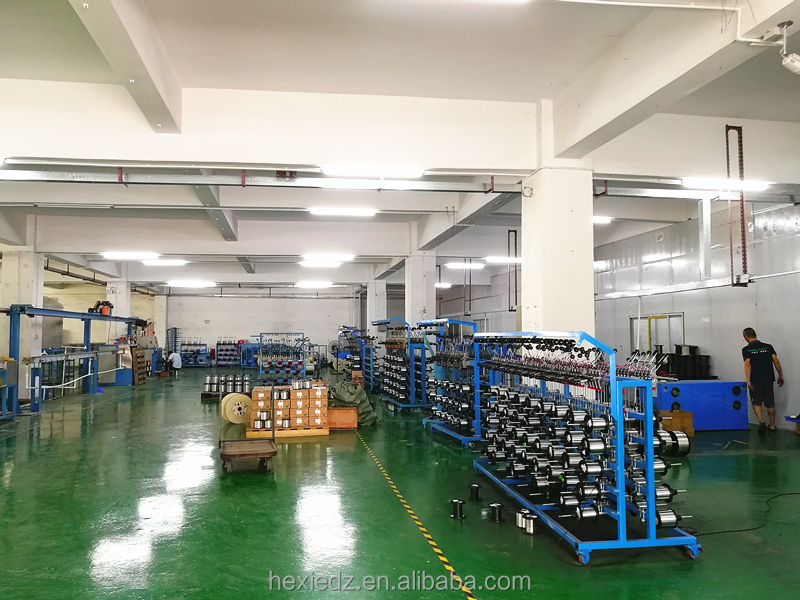

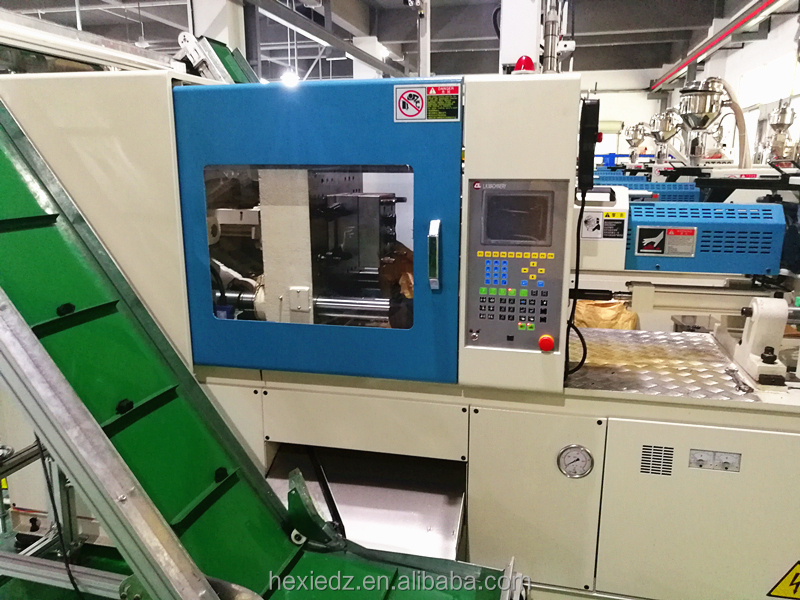

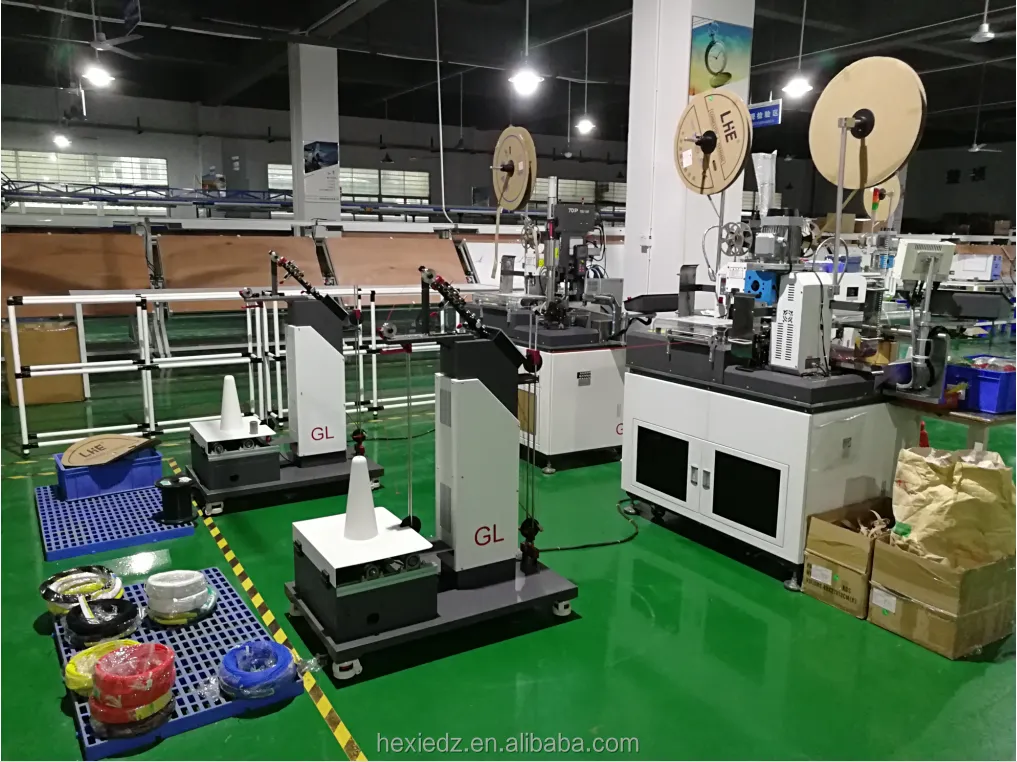

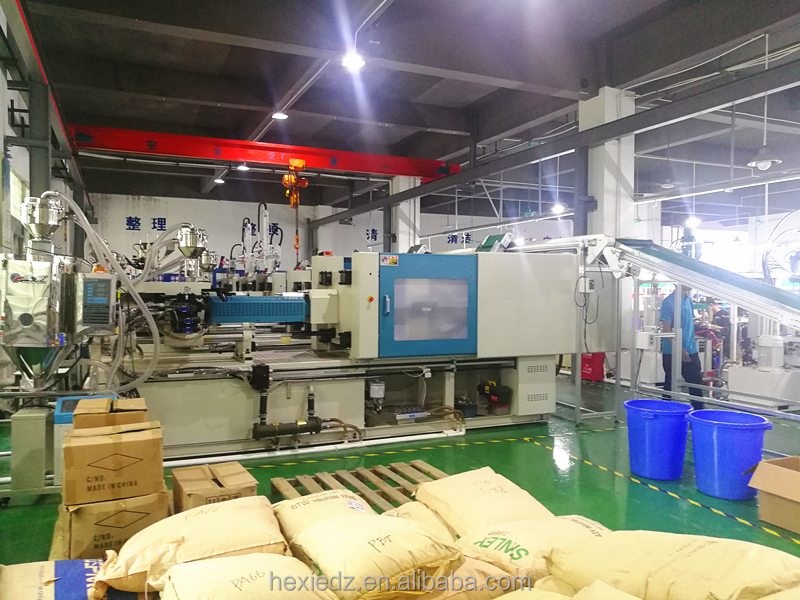

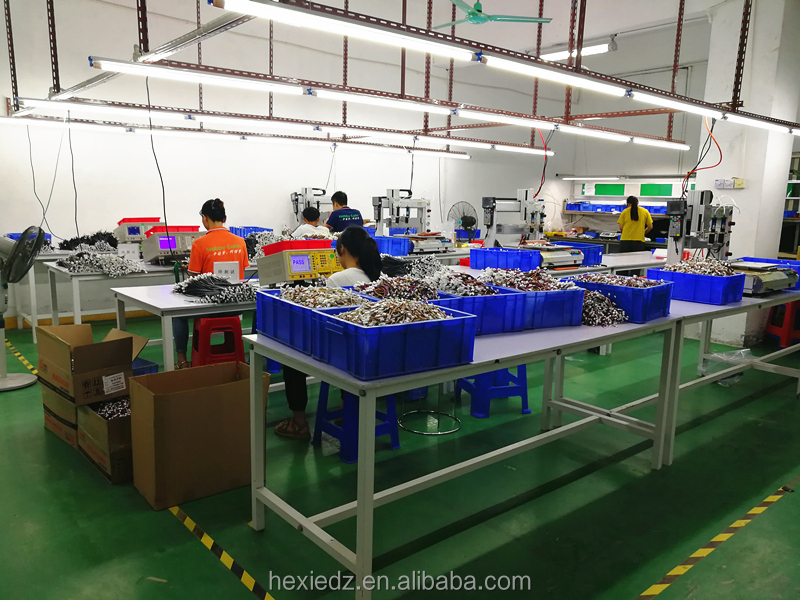

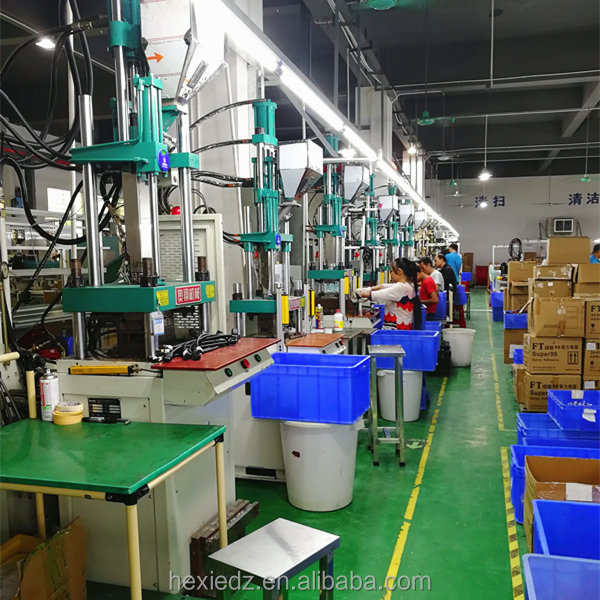

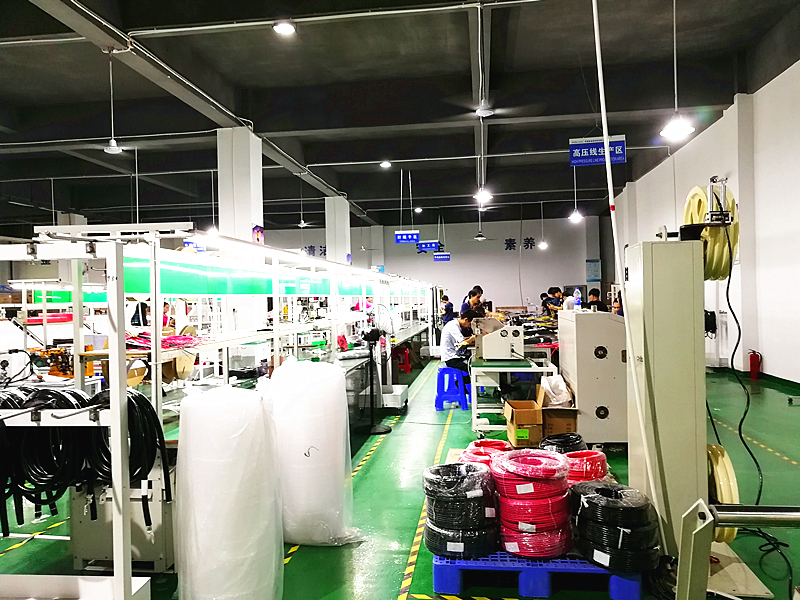

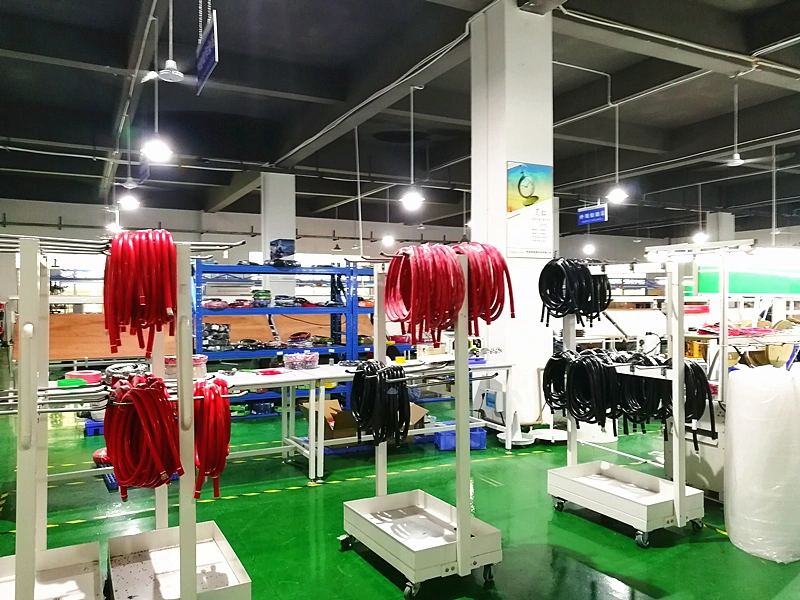

Hexie New Energy Technology is a cost effective manufacturer with advanced equipments located inHumen, Dongguan.
We provide design, development, production and other comprehensive services, products are widely used in new energy vehicles, consumer electronics, industrial equipments, communications and OEMs. In every production link, we have advanced technology and strict control standards, can ensure the stability of each batch of products and high quality.The factory has passed ISO9001:2015,IATF16949:2016 and E484243 certifications to ensure high quality of products.
